SUCCESS Heat Resistant Clear Fused Quartz Plate With High Quality

FOB Reference Price:Get Latest Price
$1.00 - $100.00 / Pieces | 1 Piece/Pieces (Min. Order)
Shipping:
Support Express · Sea freight · Land freight · Air freight
Report Suspicious Activity
Overview
Quick Details
Type:
Clear Quartz Plate
Application:
Optical
Thickness:
0.5-300mm
Shape:
Circular Shape
Place of Origin:
Liaoning, China
Brand Name:
SUCCESS
Model Number:
SUC02306
Material:
99.99% Pure Quartz
Color:
Transparent
Keywords:
Clear Quartz Glass
Work Temperature:
1200C
Product Name:
Quartz Glass Plate
Package:
Standard Export Package
Size:
Customised
Surface:
Smooth
Density:
2.2g/cm3
Certificate:
ISO9001
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month SUCCESS JGS1 Optical Quartz Plate with High Transparency
Packaging & Delivery
Packaging Details
Standard Export Package
Port
Dalian
Product Description

        The formation of quartz glass is a result of the high viscosity of the melt. Used in the manufacture of semiconductors, electric light sources, semi-conductive communication devices, lasers, optical instruments, laboratory instruments, electrical equipment, medical equipment and chemical instruments resistant to high temperature and corrosion, chemical, electronics, metallurgy, building materials and national defense industries, applications is very extensive.
       High-purity quartz glass can be used to make optical fibers.With the development of semiconductor technology, quartz glass is widely used in various processes of semiconductor production. For example, the Czochralski method converts polycrystals into single crystal silicon; the cleaning bath used for cleaning; the diffusion tube used for diffusion, the grooved boat; the bell jar used for ion implantation, and the like.

1.High purity :SiO2> 99.99%.
2.Operating Temperature: 1250℃; SoftenTemperature: 1730℃ .
3.Excellent visual and chemical performance:acid-resistance,alkali resistance,Good thermal stability
4.Health care and environmental protection.
5.No air bubble and no air line.
6.Excellent electrical insulator.

Property
Value
Property
Value
Density
2.2x103 kg/m3
Dielectric Properties
(20°C and 1 MHz)
Hardness
5.5 - 6.5 Mohs' Scale 570 KHN 100
Constant
3.75
Design Tensile Strength
4.8x107 Pa (N/m2) (7000 psi)
Strength
5x107 V/m
Design Compressive Strength
Greater than 1.1 x 109 Pa (160,000 psi)
Loss Factor
Less than 4x10-4
Bulk Modulus
3.7x1010 Pa (5.3x106 psi)
Dissipation Factor
Less than 1x10-4
Rigidity Modulus
3.1x1010 Pa (4.5x106 psi)
Index of Refraction
1.4585
Young's Modulus
72GPa (10.5x106 psi)
Constringence (Nu)
67.56
Poisson's Ratio
0.17
Velocity of Sound-Shear Wave
3.75x103 m/s
Coefficient of Thermal Expansion
5.5x10 -7 cm/cm·°C (20°C-320°C)
Velocity of Sound/Compression Wave
5.90X103 m/s
Thermal Conductivity(20°)
1.4 W/m·°C
Sonic Attenuation
Less than 11 db/m MHz
Specific Heat(20°)
670 J/kg·°C
Permeability Constants(700°C)
(cm3 mm/cm2 sec cm of Hg)
Softening Point
1683°C
Helium
210x10-10
Annealing Point
1215°C
Hydrogen
21x10-10
Strain Point
1120 °C
Deuterium
17x10-10
Electrical Resistivity
7x107 ohm cm (350°C)
Neon
9.5x10-10

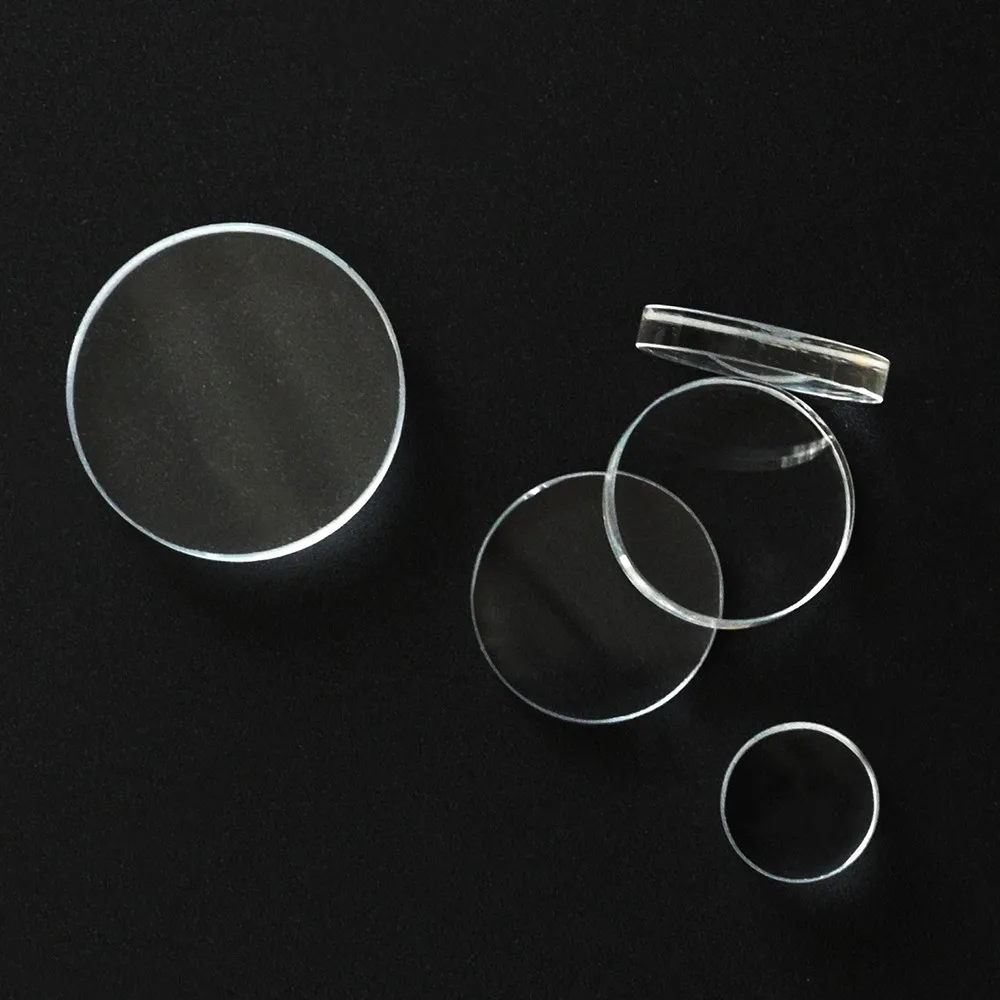

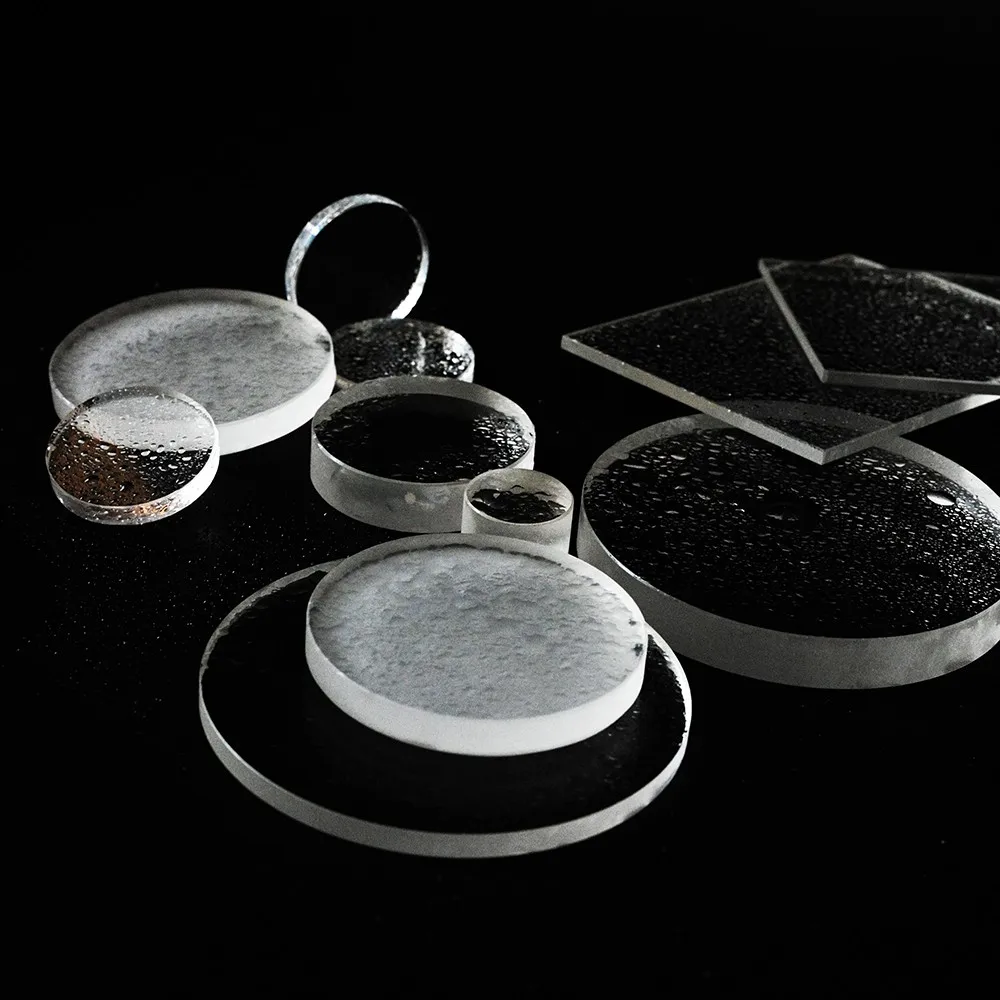

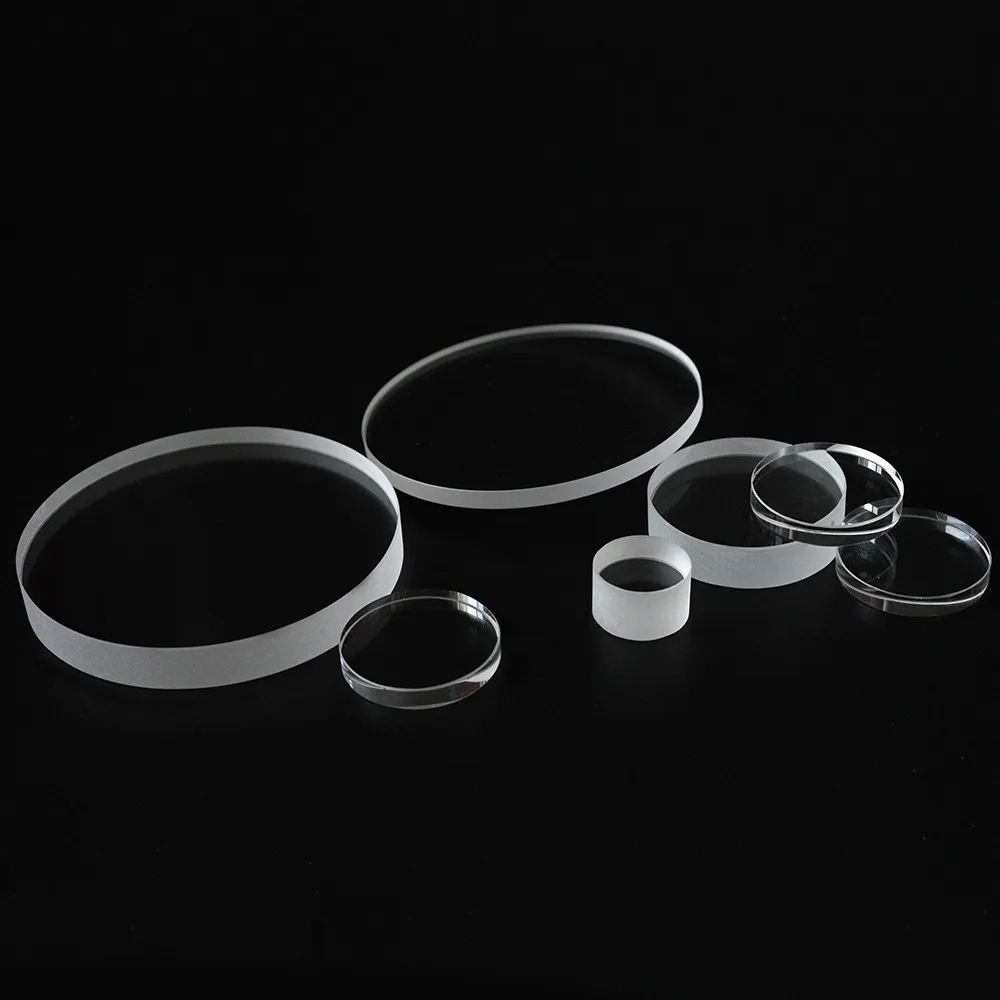

Quartz Plate
Material
99.99% Pure Quartz Crystal
Color
Transparent
Size
1.Square quartz discs:Length 5-1000mm
                                               Width 5-800mm
                                               Thickness 0.5-300mm
2.Round quartz discs:Diameter 5-800mm
                                              Thickness 0.5-300mm
3.OEM: All different sizes can be done according to customer's demand.
Dimention Tolerance
+/-0.01
Coating
Mirror Coated,Ar Coated
Application
Widely used in electric light source, electrical appliances (electric), semiconductor, Solar, optical communications, military industry, metallurgy, building materials, chemical, machinery, electricity, environmental protection and other.
Applications

Quartz glass has a very low coefficient of thermal expansion, high temperature resistance, excellent chemical stability, excellent electrical insulation, low and stable ultrasonic delay performance, optimum UV transmission performance, and visible light transmission and near infrared spectroscopy. And has higher mechanical properties than ordinary glass. Therefore, it is one of the indispensable materials in the modern technology of space technology, atomic energy industry, national defense equipment, automation system, and semiconductor, metallurgy, chemical, electric light source, communication, light industry, building materials and other industries.

Company Information

       Enterprises have a professional management, design, development, production, testing and modern marketing personnel team.We do research by ourselves, and we are the specialized manufacturer with long history in the quartz glass industry.We serve numerous enterprises at home and abroad with our stable product quality,reasonable price and professional after-sales team.
        We produce and export variety of transparent and quartz glass products, mainly including quartz glass tube, quartz glass plate,quartz glass crucible, quartz glass instrument, quartz heating lamp,UV germicidal lamp, quartz rod, different Infrared and Ultraviolet quartz glass and other relation quartz glass products. Especially we have a great achievement on Quartz singing products, Quartz singing products including Quartz crystal singing bowl, Quartz crystal singing forks,Quartz crystal singing pyramid, singing harp and so on.
          We will provide best quality, best service and best price, warmly welcome your visit !

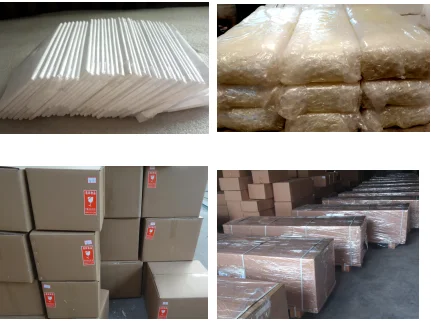

Packing & Delivery

Packing Details : Standard Export Package

Delivery Time:
7-25 days
Delivery:Generally, we use the Fedex, DHL, UPS, TNT, Shunfeng, etc. Please note it before delivery. Transit time deponds on the express and destination. By the way, we would re-check all the details before delivery.

Related Products

                    Quartz Tube

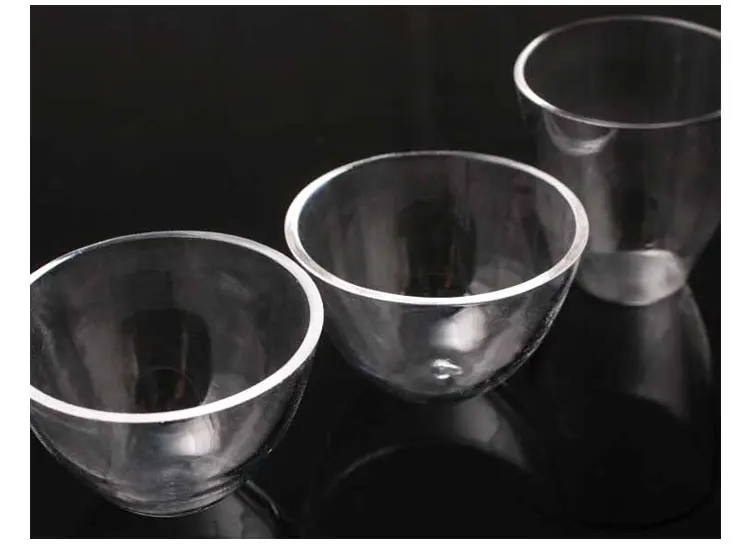

                      Quartz Crucible
