SUCCESS Clear UV Quartz Plate polished Type Quartz Glass Substrate

FOB Reference Price:Get Latest Price
$1.00 - $100.00 / Pieces | 1 Piece/Pieces (Min. Order)
Shipping:
Support Express · Sea freight · Land freight · Air freight
Report Suspicious Activity
Overview
Quick Details
Type:
Clear Quartz Plate
Application:
Industry/Lab
Thickness:
0.5-300mm, 0.5-100mm
Shape:
Circular Shape
Place of Origin:
Liaoning, China
Brand Name:
SUCCESS
Model Number:
SUC02306
Material:
99.99% Pure Quartz
Color:
Transparent
Work Temperature:
1250C
Product Name:
Quartz Glass Plate
Package:
Standard Export Package
Size:
Customised
Surface:
Polishing
MOQ:
1 Piece
Diameter:
1-1500mm
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month SUCCESS JGS1 Optical Quartz Plate with High Transparency
Packaging & Delivery
Packaging Details
Standard Export Package
Port
Dalian

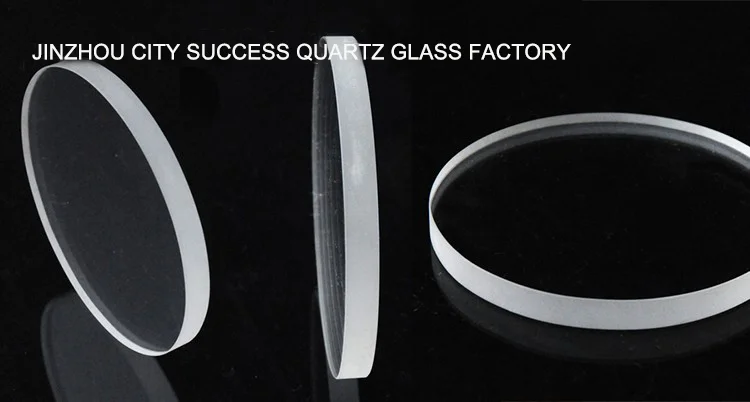

Product Description

We are a manufacturer of Quartz glass fused silica plate/sheet .

Size&design: Accept customize according to different diameter ,thickness,length or sending your drawing.


Advantage of Quartz Glass Plate/Sheet/disc:
1)High purity :SiO2> 99.99%.
2)Operating Temperature: 1250℃; SoftenTemperature: 1730℃ .
3)Excellent visual and chemical performance:acid-resistance,alkali resistance,Good thermal stability
4)Health care and environmental protection.
5)No air bubble and no air line.
6)Excellent electrical insulator.

Property
Value
Property
Value
Density
2.2x103 kg/m3
Dielectric Properties
(20°C and 1 MHz)
Hardness
5.5 - 6.5 Mohs' Scale 570 KHN 100
Constant
3.75
Design Tensile Strength
4.8x107 Pa (N/m2) (7000 psi)
Strength
5x107 V/m
Design Compressive Strength
Greater than 1.1 x 109 Pa (160,000 psi)
Loss Factor
Less than 4x10-4
Bulk Modulus
3.7x1010 Pa (5.3x106 psi)
Dissipation Factor
Less than 1x10-4
Rigidity Modulus
3.1x1010 Pa (4.5x106 psi)
Index of Refraction
1.4585
Young's Modulus
72GPa (10.5x106 psi)
Constringence (Nu)
67.56
Poisson's Ratio
0.17
Velocity of Sound-Shear Wave
3.75x103 m/s
Coefficient of Thermal Expansion
5.5x10 -7 cm/cm·°C (20°C-320°C)
Velocity of Sound/Compression Wave
5.90X103 m/s
Thermal Conductivity(20°)
1.4 W/m·°C
Sonic Attenuation
Less than 11 db/m MHz
Specific Heat(20°)
670 J/kg·°C
Permeability Constants(700°C)
(cm3 mm/cm2 sec cm of Hg)
Softening Point
1683°C
Helium
210x10-10
Annealing Point
1215°C
Hydrogen
21x10-10
Strain Point
1120 °C
Deuterium
17x10-10
Electrical Resistivity
7x107 ohm cm (350°C)
Neon
9.5x10-10
Production Process
Related Products

                 Quartz Tube

                  Quartz Crucible

             Quartz Rod

    Large Diameter Quartz Tube
            Spiral Quartz Tube
                  Quartz Wool

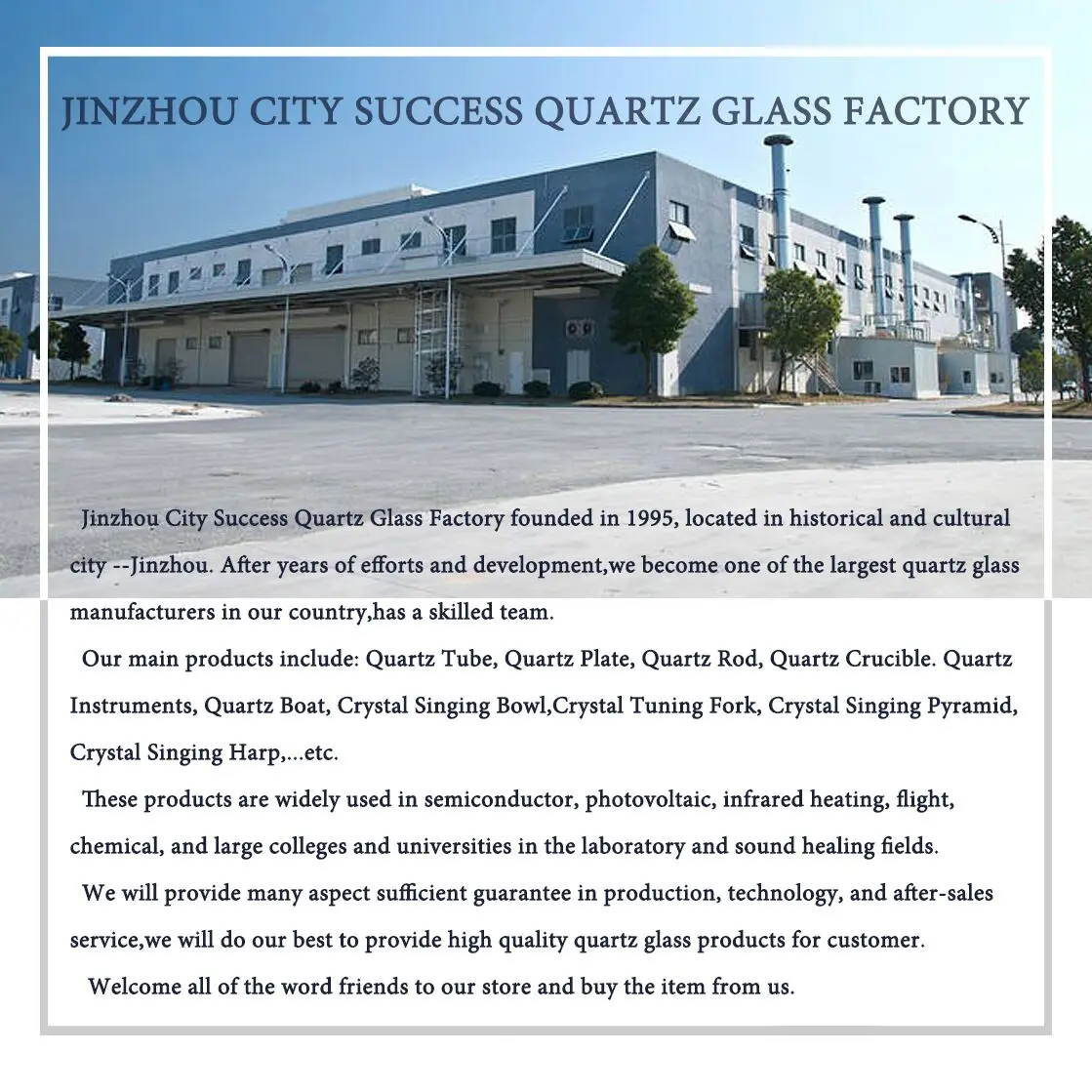

Company Information
Packing & Delivery

Packing Details: Standard Export Package

Delivery Details: By Sea Or Air For Batch Goods.
                        FedEx/DHL/UPS/TNT For Samples Or Small Weighted Goods, Door To Door.

Our Service

Why choose us?

1.High Quality Control
We are professional manufacturer about quartz poduct in China, combined with design produce together. We'll check each item one by one to make sure the products in high quality before shipment.
2.Competitive Price
We are factory, and we are the source, We promise to offer you competitive factory price.
Our advantage:
1). We are a professional manufacturer for quartz product
2). We will try our best to offer the most affordable price and best service
3). We can accept customized
4). We can send you samples for review the quality before your ordering.
5). We will take detailed pictures for you check before shipping,
6). We can delivery the order on time.
7). we will keep all the files and full set of printings for re-orders
How to order:
Step1 Please choose the goods with links or pictures which you want to order, Then click contact supplier or chat with me Or just send an inquiry. When we get your inquiry, we will give you a quotation soon within 24hours.
Step2 You can email us your order list with details, we'll reply right away when we received your email.
