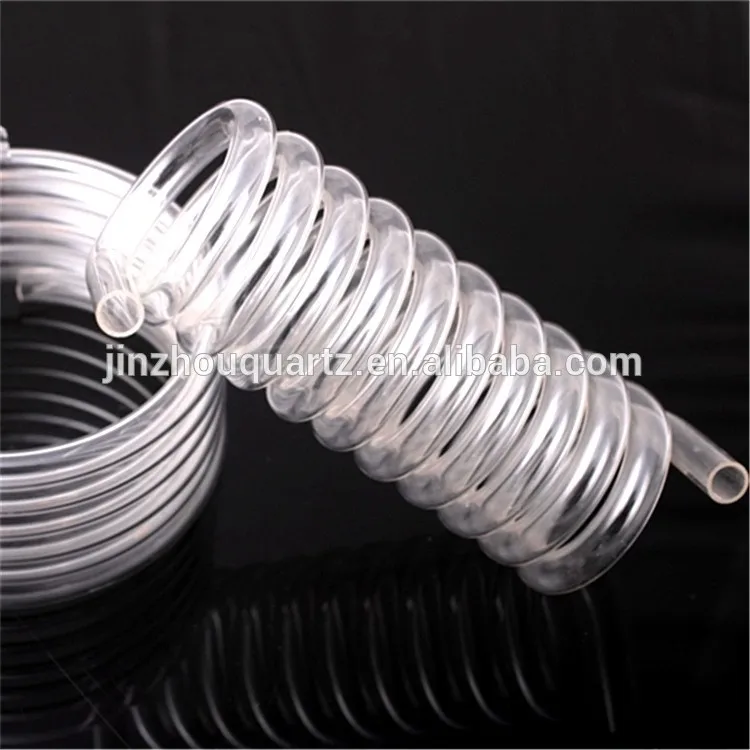

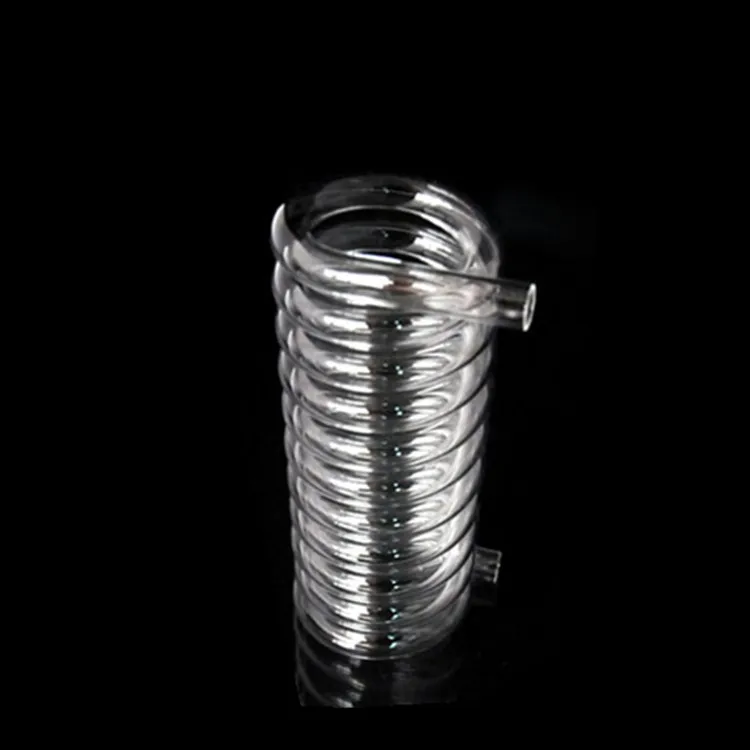

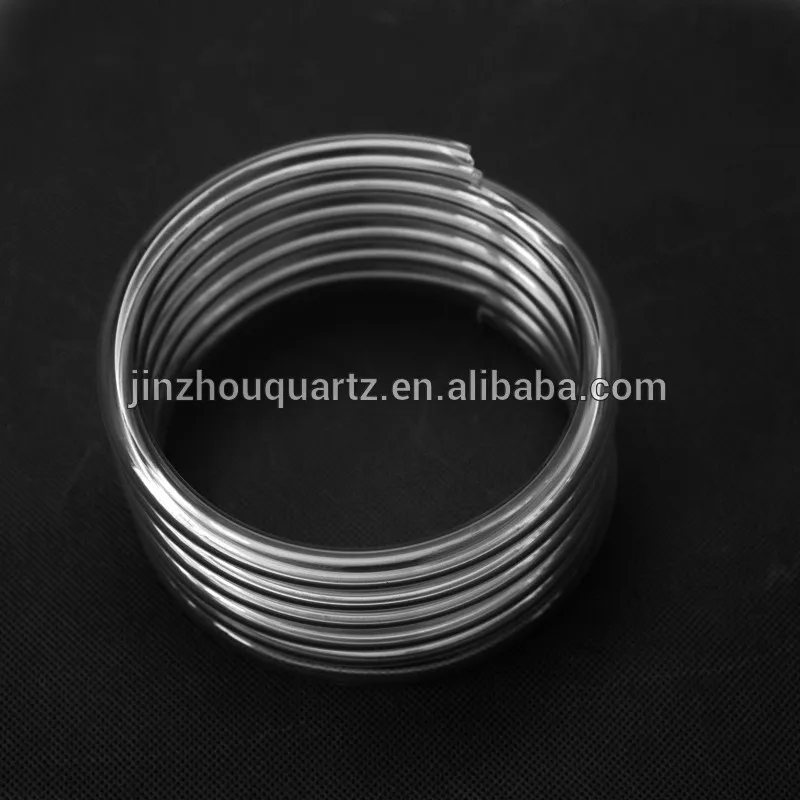

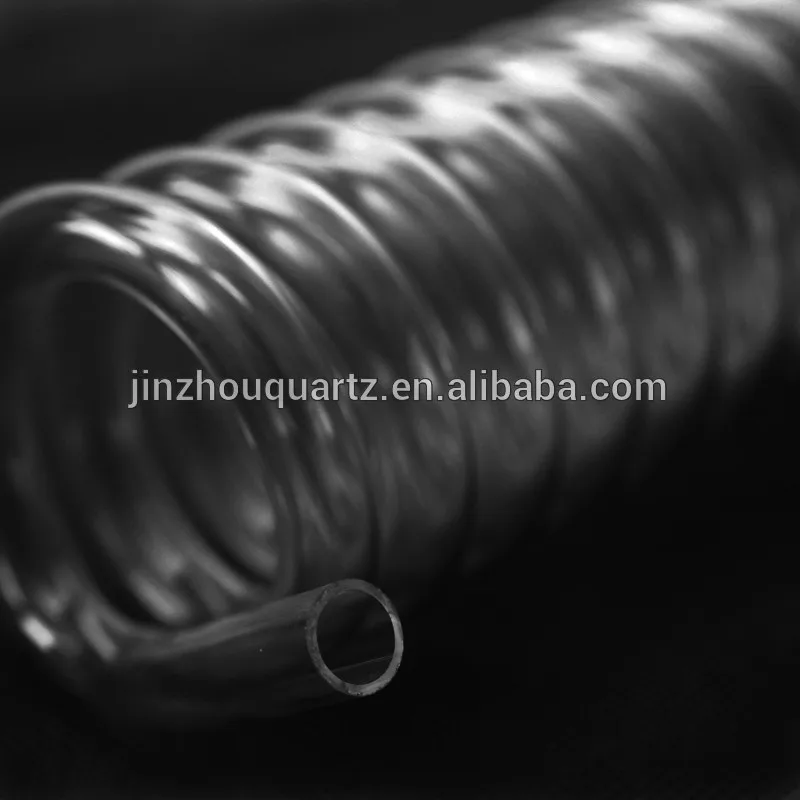

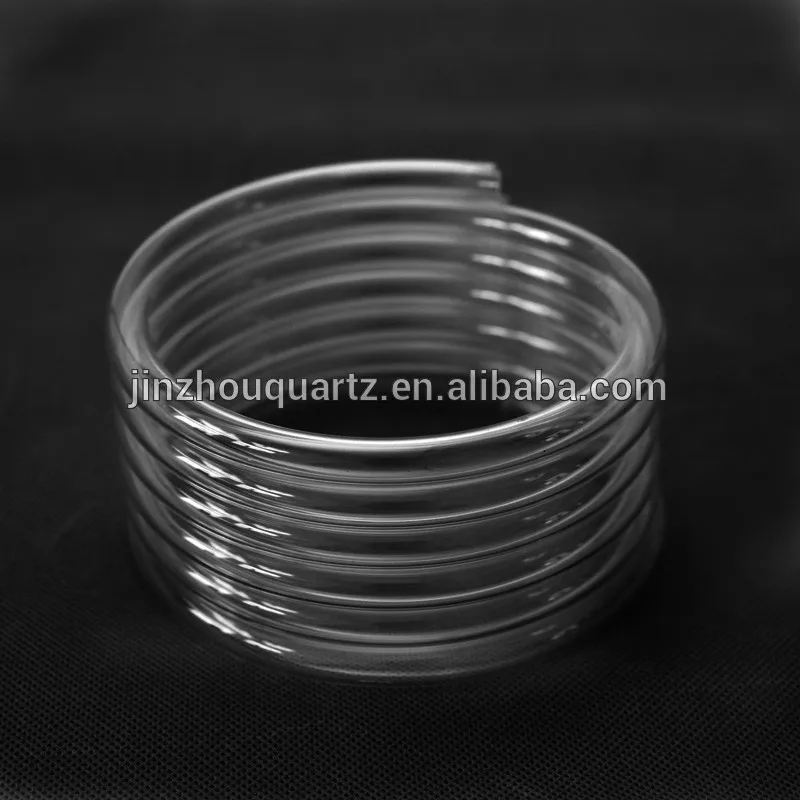

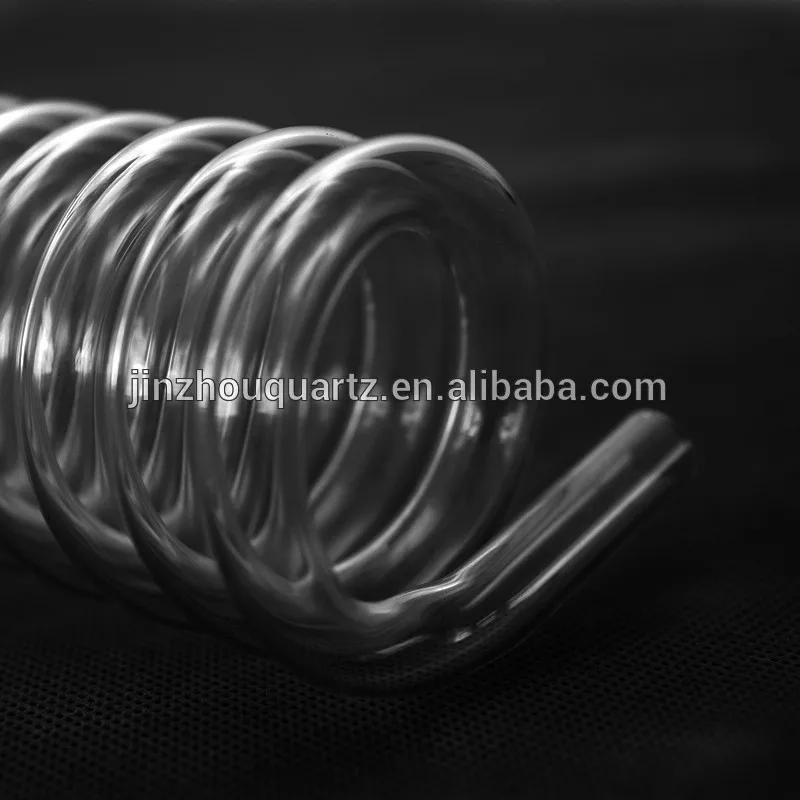

SUCCESS Helical Quartz Coiled Tube for Plastic Forming Machine

FOB Reference Price:Get Latest Price
$0.10 - $99.00 / Pieces | 1 Piece/Pieces SUCCESS Helical Quartz Coiled Tube for Plastic Forming Machine (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Liaoning, China
Brand Name:
SUCCESS
Model Number:
SUC02305
Type:
Clear Quartz Pipe
Color:
Clear, Transparent
Application:
Industry
Surface Treatment:
Polished
Shape:
One End Closed Quartz Tube
Outside Diameter:
1.5-450mm
Ozone Content:
Ozone Free
Material:
99.99% Pure Quartz
Keywords:
Clear Quartz Glass
Work Temperature:
1200C
Product Name:
Quartz Glass tube
Package:
Standard Export Package
Size:
Customised
Surface:
Smooth
Density:
2.2g/cm3
Certificate:
ISO9001
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month SUCCESS Helical Quartz Coiled Tube for Plastic Forming Machine
Packaging & Delivery
Packaging Details
Standard Export Package
Port
Dalian
Lead Time :
7-15 Days
Overview

The Most Professional Manufacturer of Quartz Tube
Success Manufactruer Produce Success Production , Success Production Just for Success You.
Success Quartz Helps You Succeed.
Product Description

        The formation of quartz glass is a result of the high viscosity of the melt. Used in the manufacture of semiconductors, electric light sources, semi-conductive communication devices, lasers, optical instruments, laboratory instruments, electrical equipment, medical equipment and chemical instruments resistant to high temperature and corrosion, chemical, electronics, metallurgy, building materials and national defense industries, applications is very extensive.
       High-purity quartz glass can be used to make optical fibers.With the development of semiconductor technology, quartz glass is widely used in various processes of semiconductor production. For example, the Czochralski method converts polycrystals into single crystal silicon; the cleaning bath used for cleaning; the diffusion tube used for diffusion, the grooved boat; the bell jar used for ion implantation, and the like.

1.High purity :SiO2> 99.99%.
2.Operating Temperature: 1250℃; SoftenTemperature: 1730℃ .
3.Excellent visual and chemical performance:acid-resistance,alkali resistance,Good thermal stability
4.Health care and environmental protection.
5.No air bubble and no air line.
6.Excellent electrical insulator.

Property
Value
Property
Value
Density
2.2x103 kg/m3
Dielectric Properties
(20°C and 1 MHz)
Hardness
5.5 - 6.5 Mohs' Scale 570 KHN 100
Constant
3.75
Design Tensile Strength
4.8x107 Pa (N/m2) (7000 psi)
Strength
5x107 V/m
Design Compressive Strength
Greater than 1.1 x 109 Pa (160,000 psi)
Loss Factor
Less than 4x10-4
Bulk Modulus
3.7x1010 Pa (5.3x106 psi)
Dissipation Factor
Less than 1x10-4
Rigidity Modulus
3.1x1010 Pa (4.5x106 psi)
Index of Refraction
1.4585
Young's Modulus
72GPa (10.5x106 psi)
Constringence (Nu)
67.56
Poisson's Ratio
0.17
Velocity of Sound-Shear Wave
3.75x103 m/s
Coefficient of Thermal Expansion
5.5x10 -7 cm/cm·°C (20°C-320°C)
Velocity of Sound/Compression Wave
5.90X103 m/s
Thermal Conductivity(20°)
1.4 W/m·°C
Sonic Attenuation
Less than 11 db/m MHz
Specific Heat(20°)
670 J/kg·°C
Permeability Constants(700°C)
(cm3 mm/cm2 sec cm of Hg)
Softening Point
1683°C
Helium
210x10-10
Annealing Point
1215°C
Hydrogen
21x10-10
Strain Point
1120 °C
Deuterium
17x10-10
Electrical Resistivity
7x107 ohm cm (350°C)
Neon
9.5x10-10
Quartz Tube
Material
99.99% Pure Quartz Crystal
Color
Transparent
Size
1. Diameter: 1.5-450mm,thickness 0.5-10mm.
2. Thickness: 0.5-10mm.
3. Length: 10-3500mm.
4. OEM: All different sizes can be done according to customer’s demand.
Application
Widely used in electric light source, electrical appliances (electric), semiconductor, Solar, optical communications, military industry, metallurgy, building materials, chemical, machinery, electricity, environmental protection and other.
Applications

Quartz glass has a very low coefficient of thermal expansion, high temperature resistance, excellent chemical stability, excellent electrical insulation, low and stable ultrasonic delay performance, optimum UV transmission performance, and visible light transmission and near infrared spectroscopy. And has higher mechanical properties than ordinary glass. Therefore, it is one of the indispensable materials in the modern technology of space technology, atomic energy industry, national defense equipment, automation system, and semiconductor, metallurgy, chemical, electric light source, communication, light industry, building materials and other industries.

Company Information

       Enterprises have a professional management, design, development, production, testing and modern marketing personnel team.We do research by ourselves, and we are the specialized manufacturer with long history in the quartz glass industry.We serve numerous enterprises at home and abroad with our stable product quality,reasonable price and professional after-sales team.
        We produce and export variety of transparent and quartz glass products, mainly including quartz glass tube, quartz glass plate,quartz glass crucible, quartz glass instrument, quartz heating lamp,UV germicidal lamp, quartz rod, different Infrared and Ultraviolet quartz glass and other relation quartz glass products. Especially we have a great achievement on Quartz singing products, Quartz singing products including Quartz crystal singing bowl, Quartz crystal singing forks,Quartz crystal singing pyramid, singing harp and so on.
          We will provide best quality, best service and best price, warmly welcome your visit !

Packing & Delivery

Packing Details : Standard Export Package

Bubble Wrap

Foam Box

Wooden Case

Delivery Details : Multiple Modes of Transport

Express

Maritime transport

Air transportation
